The assignment

Show a user’s connected providers and complete a connect flow without placing server authority on the device.

The durable source is this prompt, SPEC.md, the machine-readable contract, and its layered acceptance criteria. Generated firmware is a disposable candidate.

Reference frame

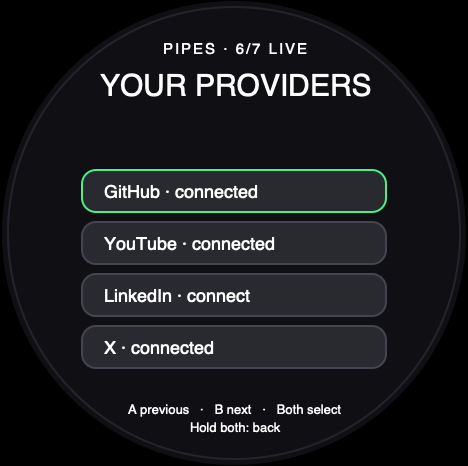

This is a deterministic screenshot of the visual acceptance model. It defines the intended hierarchy and safe-area use; only a later framebuffer capture from the attached Stopwatch can count as device rendering evidence.

The build prompt

Build ESPtember Day 33: Pipes for the M5Stack Stopwatch Dev Kit (C152).

Read these before writing code:
- .agents/skills/build-stopwatch-lessons/SKILL.md
- .agents/skills/prompt-first-embedded-lessons/SKILL.md
- days/day-07-touch-calibration/SPEC.md
- days/day-33-pipes/SPEC.md
- days/day-33-pipes/tests/contract.json

Treat the prompt, spec, tests, and acceptance criteria as source.
Put deterministic behavior in a portable core and keep Arduino, LVGL, M5Unified, storage, network, audio, and sensor adapters outside it.
Run scripts/prompt-contract/validate_day.sh days/day-33-pipes before compiling a device candidate.
Do not edit the contract or tests to make a candidate pass.

Hardware and shared platform

- Target board_M5StopWatch on ESP32-S3 with OPI PSRAM.
- Hold the device with the lanyard loop at the bottom: BtnA is physical left and BtnB is physical right.
- Immediately after M5.begin(), set panel width 468, height 466, offset_x 6, offset_y 0, then rotation 0.
- Never draw rows 466 or 467. Keep focus decoration inset and every interactive bound inside the round safe area.
- Load Preferences namespace espt-touch, blob key record, after display setup and before touch input.
- Accept and validate Day 07 version 1 and version 2 records. Read raw touch, apply the complete shared warp, clamp once, then feed the mapped point to the application.
- Provide the shared runtime calibration entry path. App-only installation must preserve the record.
- Allocate retained frames and large working buffers in PSRAM; fail visibly and over serial when required hardware or memory is unavailable.

Controls

Use the default grammar: BtnA/left is Previous or Decrease; BtnB/right is Next or Increase; short both is Enter; hold both for 600 ms is Back. Preserve the 80 ms join and overlap rules and consume chord clicks.
Touch must dispatch the same semantic actions as physical controls.

Lesson behavior

- Authenticate the device user with the Day 32 session; keep the WorkOS API key only in the gateway.
- Fetch a bounded provider list with explicit connected state, safe detail, and age. Refresh every minute and on return from QR.
- Left and right select providers; Enter opens details or a connect QR; Back returns to the list.
- Use header buffers sized for real bearer tokens, bound bodies, validate gateway schema, and name auth and transport failures.
- A successful phone connection changes the row to connected without rebooting or losing selection.

Diagnostics and acceptance

- Prefix serial protocol lines with D33_ and implement status, reset, action, capture, and touchlog commands.
- Report hardware identity, corrected geometry, touch-map version and generation, current portable state, memory headroom, and last named error.
- Injected actions must use the same reducer, hit testing, callbacks, and control recognizer as physical input.
- Retain the exact RGB565 pixels sent to M5GFX and stream captures in bounded chunks without blocking the watchdog.
- Run every scenario in tests/contract.json, generated deterministic sequences, the deliberate mutation, and the lesson-specific checks in SPEC.md.
- Complete 20 largest-state round trips without reset or growing heap/PSRAM use.
- Confirm the active touch-map version and generation remain unchanged.
- Physically review touch alignment, BtnA/BtnB direction, chord behavior, cues, clipping, lower-edge use, and the absence of a black bar.

Record host, compile, injected-device, and physical evidence separately.
Never describe reference rendering or injected input as physical proof.

Required behavior

• Authenticate the device user with the Day 32 session; keep the WorkOS API key only in the gateway.
• Fetch a bounded provider list with explicit connected state, safe detail, and age. Refresh every minute and on return from QR.
• Left and right select providers; Enter opens details or a connect QR; Back returns to the list.
• Use header buffers sized for real bearer tokens, bound bodies, validate gateway schema, and name auth and transport failures.
• A successful phone connection changes the row to connected without rebooting or losing selection.

Recorded evidence

The shared contract runner validates Stopwatch geometry, touch-map ownership, control metadata, state types and ranges, deterministic scenarios, round-face control bounds, and 10,000 generated actions against three disposable reducer shapes. A deliberately mutated reducer must fail.

Historical implementation evidence from before the prompt-first Stopwatch migration follows.

Recorded evidence · September 22, 2026: Verified live on hardware against a real WorkOS environment: silent re-auth, seven providers listed, six showing connected — the user’s web-made connections shared to the device exactly as the model promises (D31_PROVIDER ... connected=1). Relay-fetched detail lines await the environment’s Relay early-access enablement; the gateway degrades gracefully until then.

The reference screenshot is acceptance-model evidence. The next hardware pass must replace or supplement it with a framebuffer capture and a hand-review record.
